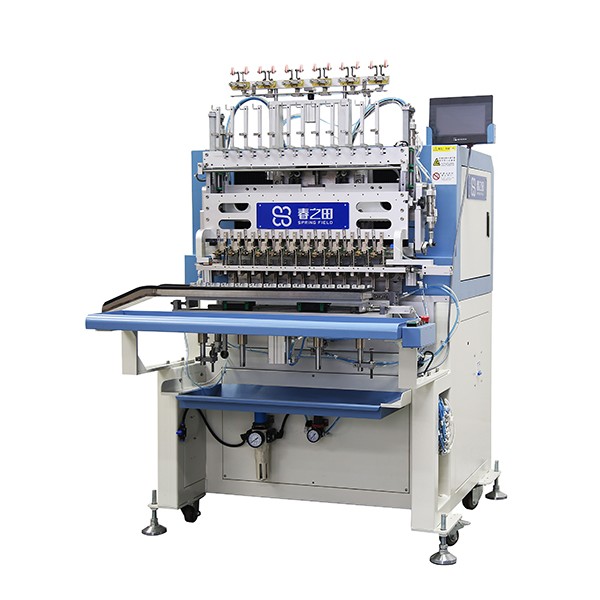

12-axis fully automatic winding and coating machine CZT-4612B

Stock:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Enter Shop

Product Details

Applicable Coils

Solenoid valve coils, switching power supply coils, relay coils, ignition coils, and other skeleton-type coils that do not require encapsulation.

Product Overview

Suitable for high-precision, high-volume winding and tape wrapping of standard skeleton coils.

Main Equipment Configuration

1. Motion Controller: Six-axis CNC precision control system

2. Solenoid Valve: SMC

3. Servo Motor: Fuji/Panasonic (Japan)

4. Guide Rails & Ball Screws: TBI/THK (Taiwan)

5. Cylinders: SMC/AirTAC

Number of Spindles	12
Spindle Pitch	46mm
Max Spindle Speed	12,000 RPM
Spindle Servo Motor Power	750W / 1500W
Option	X:400W Y:400W Z:400W A:400W
Spindle Quick Clamp Inner Diameter	Standard 8mm, Special 10mm
Wire Diameter Range	Φ0.02 - φ0.75 (>Φ0.75)
Option	For wire diameters ≥ Φ0.4, additional accessories are required
Max Winding Skeleton Outer Diameter	25mm
Guide Needle Movement Range	X: 110mm Y: 108mm Z: 120mm A: 100mm
Spindle Positioning Accuracy	±0.1°
Movement Positioning Accuracy	0.01mm
Terminal Winding Angle	Standard 0°, 90°
Control System	Six-axis CNC precision software control
Air Pressure	0.5 - 0.65 MPa
Power Supply	AC 220V / 50Hz (AC 110V / 60Hz)
Total Power	2000W / 2700W
Machine Weight	600 kg
Machine Dimensions	1200L × 900W × 1500H
Optional Add-ons	Simple cutter, automatic tape wrapping device, dual wire merging, four-wire parallel winding.
