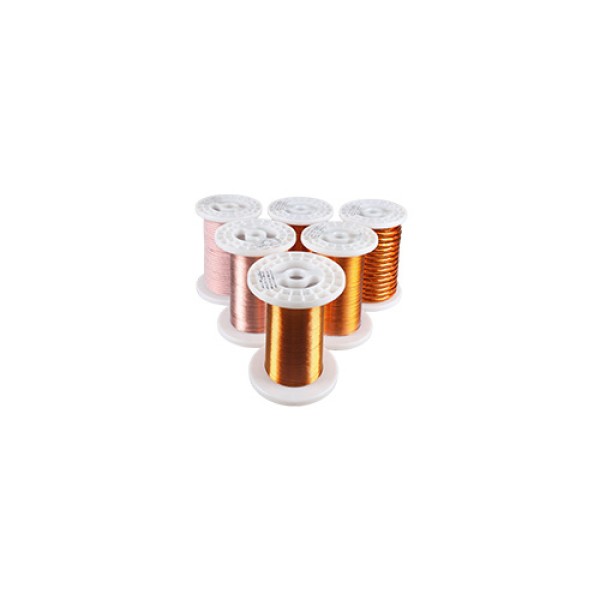

Film-wrapped wire refers to an enhanced insulated stranded wire that wraps one or more layers of insulation film around a standard stranded wire at a certain overlap rate. It offers good voltage resistance and high mechanical strength. The product's working voltage is up to 1000Vrms, and the working frequency can reach 500kHz. It is widely used in various high-frequency and high-voltage power conversion equipment.
| Single wire diameter (mm) | 0.04-1.00 |
| Number of strands | 2-7000 |
| Max finished outer diameter (mm) | 12 |
| Insulation class of enamel | 130/155/180 |
| Enamel type | Polyurethane |
| Film material | Polyester film (PET), Polytetrafluoroethylene film (F4), Polyimide film (PI) |
| Film type | Base material only, Base material with adhesive layer, Base material with self-adhesive layer |
| Film UL class | PET film up to class 155, PI film up to class 220 |
| Film color | Natural/White/Gold |
| Film overlap rate | Max 75% |
| Product characteristics | Good voltage resistance, good adhesion of insulation layer |
| Breakdown voltage (V) | >7000 |
| Applications | 5G base station power supply, electric vehicle charging pile, inductive charging, inverter welding machine, automotive electronics, ultrasonic equipment, induction heating equipment, etc. |
| Spool specifications | PT-15/ PT-25/ PN500 |
| Product certifications | ISO9001/ISO14001/IATF16949, UL/RoHS/REACH/VDE(F703) |
