The sensor probe detects the tin surface and automatically records the height of the tin surface by detecting its level.
The flux external storage box is equipped with a valve control, and an automatic circulation device can also be selected. The upper and lower layers of the flux tank are split for easy cleaning.
Solder scraping can be automatically scraped into the dross tray.

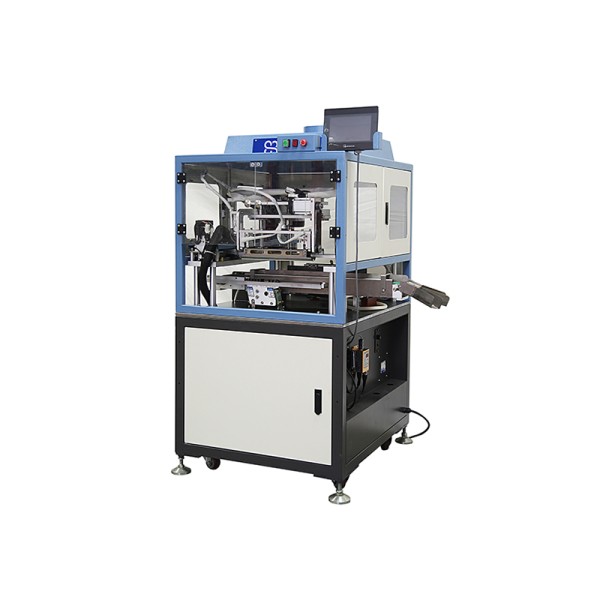

The conveyor belt is manually loaded, mainly used for soldering pins of mid-to-high-end products. The width and height of the products placed on the conveyor line can be adjusted independently, and the line can be connected to an assembly line according to customer requirements to achieve labor savings.
For products with low volume, many varieties, and varying sizes, a multi-purpose pneumatic gripper can be selected.
Parameter Description:
1. Used for tin soldering operations on vertical and horizontal transformers, inductor coils, and I-shaped inductor pins.
2. Automatic vibration feeding, automatic gripping, automatic flux application, automatic soldering (with flipping), and automatic unloading. A manual loading fixture can be added (for low-volume orders).
3. The soldering product functions include adjustable soldering angle (enabling front and rear side soldering of the coil package, as well as top and bottom flat soldering), height, angle, time, pin cleaning, automatic liquid level detection, and options for multiple rosin applications and multiple soldering cycles.
4. The equipment features a one-key start/stop function, and when a fault occurs, an audible and visual alarm is triggered. The equipment is designed with basic local/online, start, stop, emergency stop, pause, and other necessary mechanical buttons.
5. The equipment is made of high-quality materials, safe, reliable, durable, and easy to clean. The solder pot inner liner and solder rake are made of lead-free titanium alloy, which is environmentally friendly and durable. The equipment is equipped with a dross collection box that is easy to access and clean.
6. The equipment has safety panels and safety doors around it for easy and simple operation; an exhaust fan is installed at the top for smoke extraction.
7. Main equipment configuration: multi-function motion controller, 7-inch touch screen (Weinview), servo motor plus stepper motor, lead screw, slide rail (TBI), cylinder (Airtac/Chanto optional), photoelectric switch (AirTac/SMC optional), all using well-known domestic and international brands.
8. Machine dimensions: (L960*W680*H1350) approximately, with a tolerance of ±20. Unit: mm.
