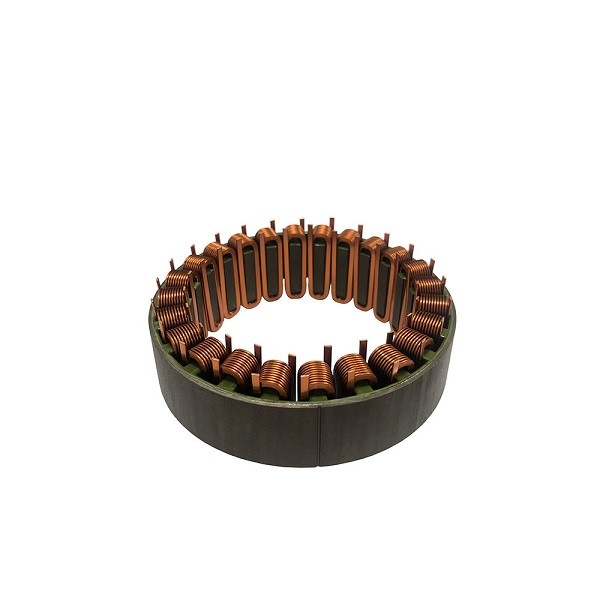

| Coil Post-processing Process Items | Flat Coils | Tips |
|---|---|---|
| Material | 200°C~220°C enameled copper wire, enameled aluminum wire, bare copper wire, bare aluminum wire, etc. (flat wire) | Use 200~220 class flat wire for good heat resistance |
| Wire Thickness (mm) | 0.05~6.0 | Maximum width-to-thickness ratio of windable wire diameter is 30 times |
| Wire Width (mm) | 0.6~20.0 | / |
| Cross-sectional Area (mm²) | 0.1~60mm² | / |
| Winding Method | Vertical winding, horizontal winding, two-wire parallel winding, figure-8 winding | / |
| Winding Direction | Clockwise winding, counterclockwise winding | / |
| Coil Inner Hole Shape | Circular, rectangular, track/obround, triangular, trapezoidal | / |
| Coil Post-processing Process | Winding, PIN bending, enamel stripping, soldering, hole drilling, PIN flattening, riveting, welding, tapping, etc. | Inner hole diameter must be at least 1.5 times the wire width |
| Coil Height (Number of Turns) | ≤95mm (0.75~200 Turns) | ≤95mm (0.75~200 Turns) Calculation method of coil height: Height = Wire Thickness (T) * Gap Coefficient (Coef) * Number of Turns (Ts) |
