| Attribute | Value | Attribute | Value |
|---|---|---|---|

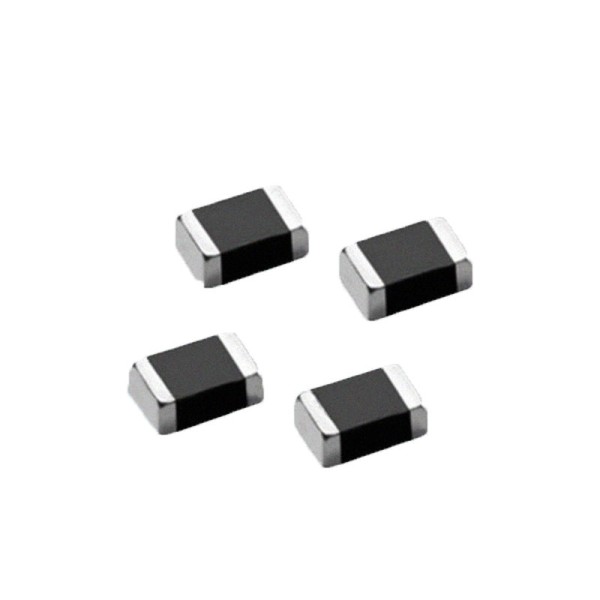

| Type | Surface Mount Inductor | Installation Method | SMD |
| Function | Power Line Inductor | Supplier Type | SMD Inductor |
| Model | Multilayer Inductor | Q Value at Different Frequencies | Not applicable |
| Brand | OEM/ODM | Application | DVC DSC Medical |
| Rated Power | 0.1~10 | Place of Origin | Guangdong, China |
| Manufacturer Production Batch (Date) | 0.05~1.4 | Brand | OEM/ODM |
| Similar Property Substitute Part Number | 0210 0402 0805 0603 1206 | Tolerance | 5%~10% |
| Operating Temperature | 25~125 | Package Type | Ferrite |
| Resistance Error | 5%-30% | Temperature Coefficient | 55~75 |
| Impedance | 5R~1800R | Reference Data | ALT Inductor |
| Frequency - Self-resonant | 500MHz~1000MHz | Features | Low DC Resistance and High Current Capability |
| Height (Max) | 0.5 | Inductance | Not applicable |
| Package/Shell | 0402 | Size/Dimensions | 0402 |
| Height | 0.5mm | Number of Coils | Not applicable |
| Inductance - Parallel | Not applicable | Inductance - Series | Not applicable |
| Rated Current - Parallel | 500mA~100mA | Saturation Current - Parallel | 500mA~100mA |
| Saturation Current - Series | 500mA~100mA | DC Resistance (DCR) - Parallel | 0.05~1.4 |
| DC Resistance (DCR) - Series | 0.05~1.4 | Shielding | Ferrite |
| Material - Core | Ferrite | Rated Current (A) | 500mA~100mA |
| Current - Saturation Value | 500mA~100mA | DC Resistance (DCR) | 0.05~1.4 |
| Packaging | Box | Inductance R | 5R~1800R |
| Material | Ferrite |
| Attribute | Value | Attribute | Value |
|---|---|---|---|
| Sales Unit | Single Item | Single Package Size | 5 × 8 × 5 cm |
| Single Product Gross Weight | 0.01 kg |
