| Attribute | Value | Attribute | Value |
|---|---|---|---|

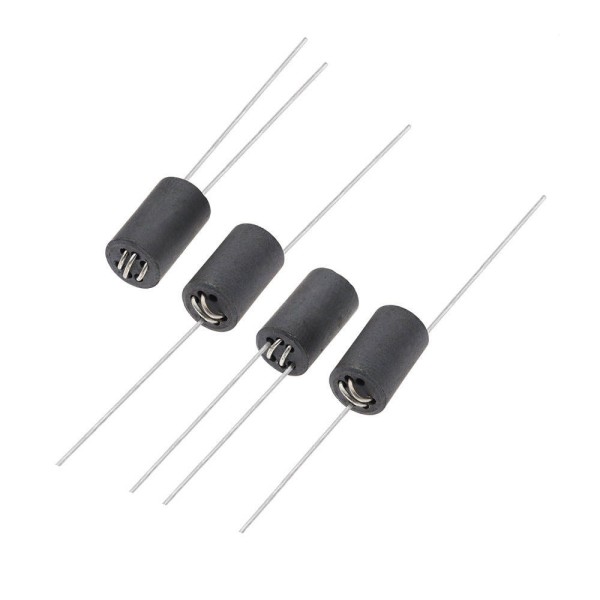

| Type | Inductor Lead | Installation Method | Through Hole (Vertical/Horizontal) |
| Function | EMI/EMC Filter, Noise Suppression, High Frequency | Supplier Type | Mass Production / OEM / ODM |
| Model | 2.5T/3T | Brand | OEM/ODM |
| Application | EMI Suppression, Power Line Filtering, Signal Filtering | Place of Origin | Guangdong, China |
| Brand | USB Interface | Tolerance | ±20% (Inductance) |
| Operating Temperature | -40°C ~ +125°C | Package Type | Through Hole / Lead Encapsulation |
| Impedance | 600Ω Min (3T) / 700Ω Min (2.5T) @100MHz | Features | High Impedance, Wideband Interference Resistance, Low DC Resistance |
| Height (Max) | 10.0mm ±0.2mm | Inductance | 2.5mH / 3mH |
| Package/Shell | Ferrite Core + Copper Wire | Size/Dimensions | 6.0mm * 10.0mm (±0.2mm) |
| Number of Coils | 3 Turns (Vertical) / 2.5 Turns (Horizontal) | Inductance - Parallel | 1/2 Inductance (Parallel Characteristics) |
| Inductance - Series | 2* Inductance (Series Characteristics) | Rated Current - Parallel | 2.5A (Max) |
| Saturation Current - Parallel | 3.0A (Max) | Saturation Current - Series | 2.8A (Max) |
| DC Resistance (DCR) - Parallel | ≤50mΩ (Max) | DC Resistance (DCR) - Series | ≤50mΩ (Max) |
| Material - Core | JR6H Ferrite Core (GM-JR6H-6*10) | Rated Current (A) | 3.0A (Max) |
| Current - Saturation Value | 3.0A (Max) | DC Resistance (DCR) | ≤50mΩ (Max) |
| Attribute | Value | Attribute | Value |
|---|---|---|---|
| Sales Unit | Single Item | Single Package Size | 0.15 × 0.15 × 0.15 cm |
| Single Product Gross Weight | 0.01 kg |
