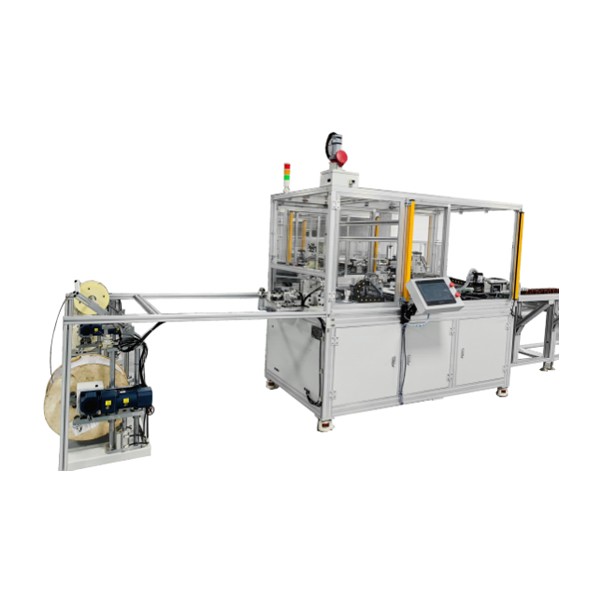

Product Features: Square winding design, using figure-8 and square winding patterns, especially suitable for winding materials that require a square structure, ensuring product shape stability, ideal for square coils or similar products.
Continuous and Vertical Winding Combined: Enables both continuous winding and vertical winding on the same equipment, saving production space and costs, particularly suitable for production processes requiring multiple layers and different winding methods.
High-Efficiency Automation: Supports automated operation, significantly improving production efficiency, reducing manual labor, and increasing output.
Wide Material Compatibility: Suitable for handling various types of wires, cables, optical fibers, etc., capable of precise winding without damaging the material.
Strong Tension Control: Precise tension control system maintains constant tension during high-speed winding, ensuring consistent quality of each winding layer.
Stable Structure: The equipment design is typically robust, suitable for long-term high-intensity operation, with good stability, reducing the likelihood of equipment failure.
Programmability: Supports presetting different winding schemes, offering high flexibility for processing various product types.
Easy Maintenance: Features a modular design for easy maintenance and servicing, reducing downtime and improving equipment utilization.
| Item | Parameter Details |
|---|---|
| Control Method | Motion Controller |
| Operation Panel | Touch Screen |
| Program Editing | PLC\ Touch Screen Communication |
| Number of Controlled Axes | 9 Axes: Unwinding - Wire Feeding - Winding - Clamping - Pulling - Winding - Wire Pickup |
| Applicable Wire Diameter (Square, Rectangular, Oval) | Width 4mm~13mm (R angle + wire width < 26mm), Thickness 0.5mm~4.5mm
|
| Coil Dimensions (Square, Rectangular, Oval) | Minimum long side: 20mm, minimum short side: 15mm (wire width * 2 + wire width)
|
| Starting Lead Length | 150mm MAX (coil outer diameter + lead length), prerequisite: wire does not sag due to self-weight |
| Winding Direction | Main unit: CW / CCW; Auxiliary unit: 1 CW, 2 CCW |
| Coil Discharge | Belt conveyor 1.5m |
| Unwinding Spindle Dimensions | Φ35×450mm, 100kg MAX |
| Product Changeover | Different coil dimensions: Program switch
|
| Power Supply | 380V, 3-phase 5-wire, 50/60Hz, 9KW |
| Equipment Dimensions | Main unit: L 1.8mW 0.75mH 1m
|
| Setup Adjustment | Mold section adjustment time approx. 30 min/time; adjustment coil loss: 5~7 pieces/time
|
