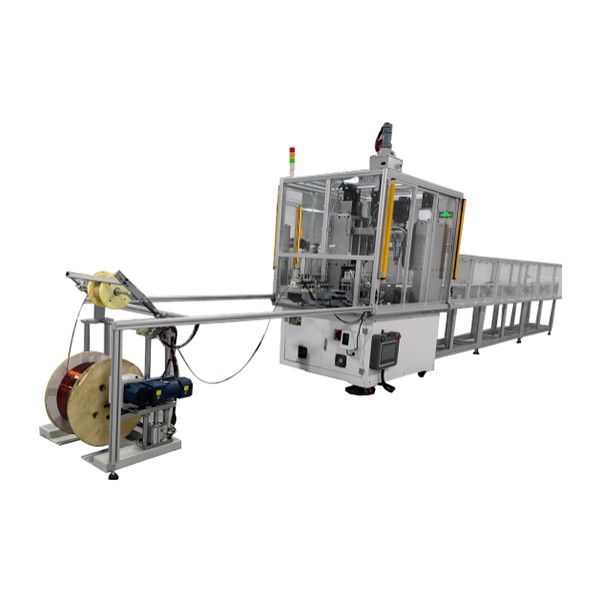

Product Features: The combination of continuous winding and vertical winding enables both continuous and vertical winding of wires, meeting the needs of different production processes, especially suitable for multi-layer winding or complex winding paths.
High Efficiency: With an automated design, it can operate quickly and continuously, improving production efficiency and reducing manual intervention.
Multi-Material Adaptability: Suitable for winding various materials, including yarn, metal wire, cables, etc., without easily damaging the material surface.
High Stability: The equipment typically features a stable structural design with low vibration and noise during operation, ensuring uniformity and consistency of winding quality.
Precise Tension Control: Equipped with a tension control system, it maintains constant tension during the winding process to ensure product quality.
Easy Operation and Maintenance: Generally comes with a user-friendly interface and simple maintenance requirements, suitable for long-term industrial use.
Programmable Function: Supports customized winding paths and patterns to meet the processing requirements of complex products.
| Item | Parameter Details |
|---|---|
| Control Method | Motion Controller |
| Operation Panel | Touch Screen |
| Program Editing | PLC / Touch Screen Communication |
| Controlled Axes | 9 Axes: Unwinding - Wire Feeding 1 - Winding 1 - Transfer - Winding - Gripping |
| Axis Stroke | Main Unit: Wire Feeding Axis 1: 100mm MAX, Winding Axis 1: 360°
|
| Applicable Wire Dimensions | Width 3mm ~ 15mm, Thickness 0.6 ~ 3.5mm
|
| Coil Dimensions | Minimum inner diameter: 10mm, Maximum inner diameter: 50mm, Maximum height: 100mm |
| Winding Direction | Forward or Reverse (select based on mold), continuous winding forward A or reverse A |
| Coil Ejection | Automatic material removal, conveyor line |
| Product Changeover | Different coil dimensions: program switching, no mold change required
|
| Winding Mold | Customizable per customer request: 1 set (forward, forward A, or reverse, reverse A) |
| Power Supply | 380V, 2-phase 3-wire, 50/60Hz, 10KW |
| Machine Dimensions | Main Unit: 6000mmW 800mmH 1700mm, Auxiliary effective length 4.5m
|
