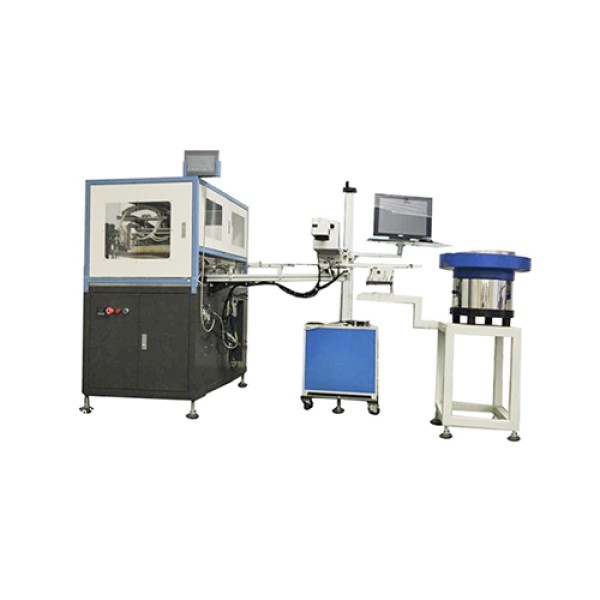

For stripping triple insulated wire products, facilitating soldering, improving yield rate, reducing manual operation: workers manually load materials onto the track, and then mechanical and cylinder actions automatically push the material to the laser stripping machine for stripping. After stripping, it is automatically pushed to the automatic soldering machine for soldering.
The sensor probe detects the solder surface, automatically checks the solder surface height and records it.
The flux external storage box is equipped with a valve for control, and an automatic circulation device can also be selected. The flux tank is split into upper and lower layers for easy cleaning.
Solder scraping can be automatically scraped into the solder dross tank.
1. Used for tinning operations on vertical/horizontal transformers, inductor coils, and I-shaped inductor pins.
2. Manual loading, automatic gripping, automatic flux dipping, automatic soldering (with flipping), and automatic unloading. A manual material placement fixture (for small batch orders) can be added.
3. Soldering product functions include: settable soldering angle (for front/rear side soldering of coil package, top/bottom flat soldering), height, angle, time, pin cleaning, automatic liquid level detection, selectable multiple rosin dipping, multiple soldering, etc.
4. The equipment has a one-key start/stop function. When a fault occurs, an audible and visual alarm is activated. The equipment is designed with basic local/remote, start, stop, emergency stop, pause and other necessary mechanical buttons.
5. The equipment is made of high-quality materials, safe, reliable, durable, and easy to clean. The solder pot inner liner and solder rake are made of lead-free titanium alloy, which is environmentally friendly and durable. The equipment is equipped with a solder dross collection box that is easy to remove and clean.
6. The equipment is surrounded by safety shields and safety protection doors, making operation convenient and simple; the top has an exhaust fan for smoke extraction.
7. Main equipment configuration: multi-function motion controller, 7-inch touch screen (Weinview), servo motor plus stepper motor, lead screw, slide rail (TBI), cylinder (Airtac/CHANTO optional), photoelectric switch (AirTAC/SMC optional), all from well-known domestic and international brands.
8. Machine dimensions: (L960*W680*H1350) approx., (excluding laser stripping machine dimensions) tolerance ±20. Unit: mm
