The sensor probe detects the tin surface, automatically monitors the tin level, and records the tin surface height.
The external flux storage box is equipped with a valve for control, and an automatic circulation device can also be selected. The upper and lower layers of the flux tank are split for easy cleaning.
Tin scraping can be automatically performed into the dross tank.
For single-product high-volume production, dual vibrating bowls for automatic feeding can be selected.
For low-volume, multi-variety, and different-sized products, multi-purpose pneumatic grippers can be selected.
1. Used for tinning the pins of vertical and horizontal transformers, inductor coils, and I-shaped inductors.

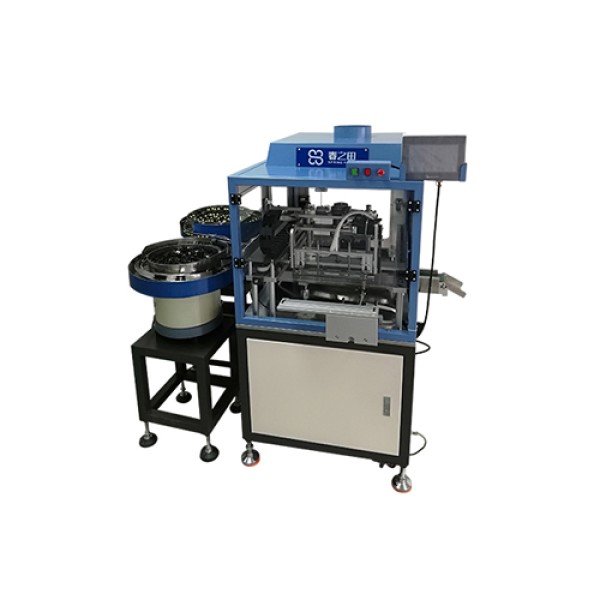

2. Dual vibrating bowls for automatic feeding, capable of soldering two different products simultaneously. Automatic pick-and-place, automatic flux application, automatic soldering (with flipping), and automatic unloading. A manual loading fixture can be added for small-batch orders.
3. Soldering product functions include: adjustable soldering angle (achieving front/rear side soldering of the coil, top/bottom flat soldering), height, angle, time, pin cleaning, automatic liquid level detection, and options for multiple flux dips and multiple solderings.
4. The equipment features one-key start/stop. When a fault occurs, an audible and visual alarm is triggered. The equipment is designed with basic local/remote, start, stop, emergency stop, and pause mechanical buttons as necessary.
5. The equipment is made of high-quality materials, safe, reliable, durable, and easy to clean. The solder pot liner and solder rake are made of lead-free titanium alloy, which is environmentally friendly and durable. The equipment is equipped with a solder dross collection box that is easy to remove and clean.
6. The equipment is surrounded by safety guards and safety doors for simple and convenient operation. The top is equipped with an exhaust fan for smoke extraction.
7. Main equipment configuration: multi-function motion controller, 7-inch touch screen (Weinview), servo motor plus stepper motor, lead screw, linear guide (TBI), cylinder (AirTAC/Xingchen optional), photoelectric switch (CHLITINA/SMC optional), all using well-known domestic and international brands.
8. Machine dimensions (L960*W680*H1350) approximately, tolerance ±20. Unit: mm
