The sensor probe detects the solder surface and automatically records the solder height by monitoring the level.
The external flux storage tank comes with a valve control, and an automatic circulation device can also be selected. The flux tank is split into upper and lower layers for easy cleaning.
Solder scraping can be automatically directed to the solder dross trough.

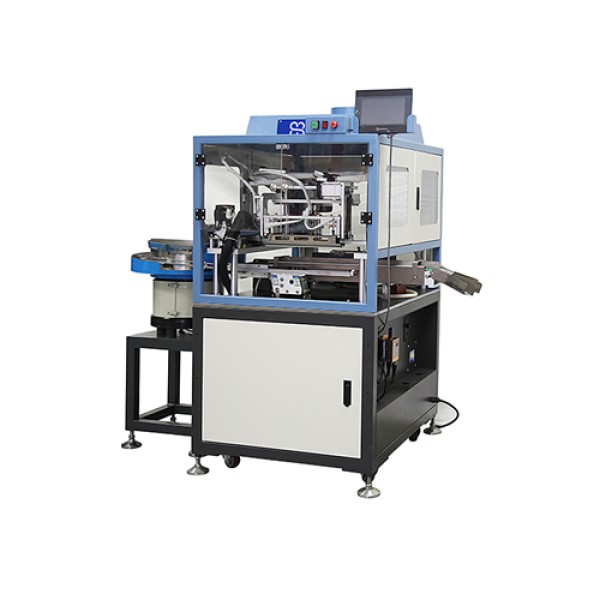

For single-product high-volume production, a single vibratory bowl feeder can be selected for automatic feeding.
For low-volume, multi-variety, and different-sized products, multiple pneumatic grippers can be selected.
1. Used for tinning the pins of vertical/horizontal transformers, inductors, and I-shaped inductors.
2. Vibratory automatic feeding, automatic gripping, automatic flux application, automatic soldering (with flipping), and automatic unloading. A manual loading fixture can be added (for small-volume orders).
3. Soldering functions include adjustable soldering angle (achieving front/rear side soldering of the coil and top/bottom flat soldering), height, angle, time, pin cleaning, automatic liquid level detection, and options for multiple flux applications and multiple soldering cycles.
4. The equipment features one-key start/stop functionality. When a fault occurs, an audible and visual alarm is triggered. The machine is designed with basic local/remote, start, stop, emergency stop, and pause buttons as necessary.
5. The equipment is made of high-quality materials, ensuring safety, reliability, durability, and easy cleaning. The solder pot liner and solder rake are made of lead-free titanium alloy for environmental protection and durability. The machine is equipped with a solder dross collection box that is easy to access and clean.
6. The machine is surrounded by safety guards and a safety door for convenient and simple operation; an exhaust fan is installed on the top for fume extraction.
7. Main configuration: multi-function motion controller, 7-inch touch screen (Weinview), servo motor plus stepper motor, lead screw and rail (TBI), cylinder (Airtac/Chanto optional), photoelectric switch (Mindman/SMC optional)—all using well-known domestic and international brands.
8. Machine dimensions: (L960*W680*H1350) mm approximately, tolerance ±20 mm.
