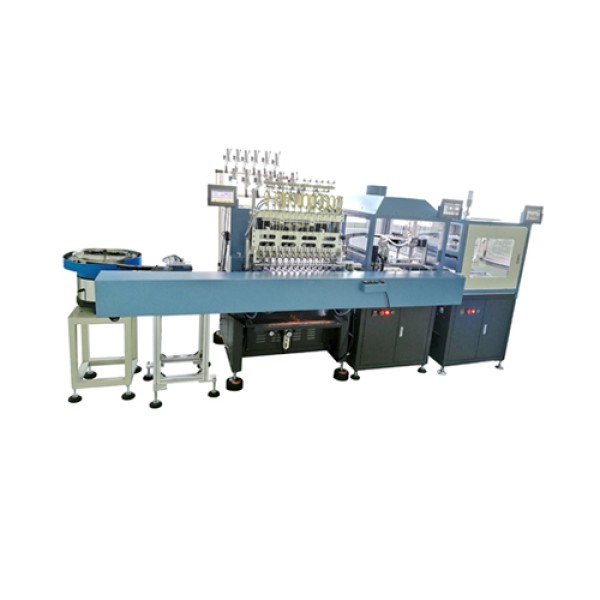

Transformers, I-shaped inductors.
Suitable for high-precision, high-volume winding of I-shaped inductors.
1. Motion controller: 6-axis CNC precision control system
2. Solenoid valve: SMC
3. Servo motor: FUJI / Panasonic (Japan)
4. Linear guide & ball screw: TBI/THK (Taiwan)
5. Cylinder: SMC/AirTac
| Number of spindles | 12 |
| Max spindle speed | 10000 rpm |
| Spindle pitch | 46mm |
| Spindle servo motor power | 750W |
| Max coil former outer diameter | 25mm |
| Loading/unloading method | Vibration bowl for automatic I-core feeding, automatic belt conveyor for unloading. |
| Operation sequence | Core/magnetic rod vibration bowl feeding → automatic winding & taping → automatic unloading → soldering → tray arrangement |
| Control system | 7-inch color touch screen, programmable controller, can store up to 35 product data |
| Applicable wire diameter | 0.03-0.4mm |
| Fixture inner bore | 8mm |
| XYZ travel distance | X:100 Y:100 Z:120 |
| Max XYZ axis moving speed | 200mm |
| Power supply | AC220V, 50/60Hz |
| Power consumption | 1500W |
| Air supply | 0.5-0.7MPa |
