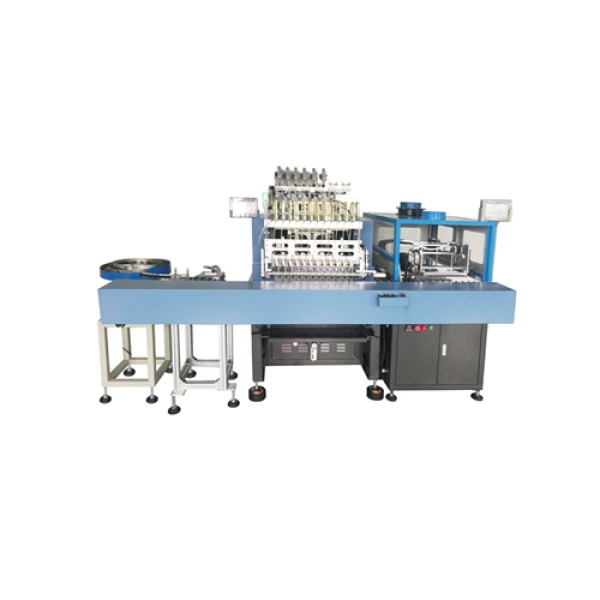

Transformers, I-shaped inductors.
Suitable for high-precision, high-volume winding of I-shaped inductors.
1. Motion controller: Six-axis CNC precision control system
2. Solenoid valve: SMC
3. Servo motor: Japan Fuji/Panasonic
4. Guide rails, ball screws: Taiwan TBI/THK
5. Cylinder: SMC/AirTAC
| Number of Spindles | 12 spindles |
| Max Spindle Speed | 10000 rpm |
| Spindle Pitch | 46mm |
| Spindle Servo Motor Power | 750W |
| Max Winding Bobbin Outer Diameter | 25mm |
| Loading/Unloading Method | Vibratory feeder automatically loads I-shaped cores; automatic belt conveyor for unloading. |
| Operating Steps | Vibratory feeder loading of bobbin/core → Automatic winding & tape wrapping → Automatic unloading → Soldering |
| Control System | 7-inch color touch screen, programmable controller, can store up to 35 product data sets |
| Applicable Wire Diameter | 0.03-04mm |
| Fixture Interface Inner Diameter | 8mm |
| XYZ Travel Distance | X:100 Y:100 Z:120 |
| Max XYZ Axis Travel Speed | 200mm/s |
| Power Supply | AC220V, 50HZ/60Hz |
| Power | 1500W |
| Air Supply | 0.5-0.7MPa |
