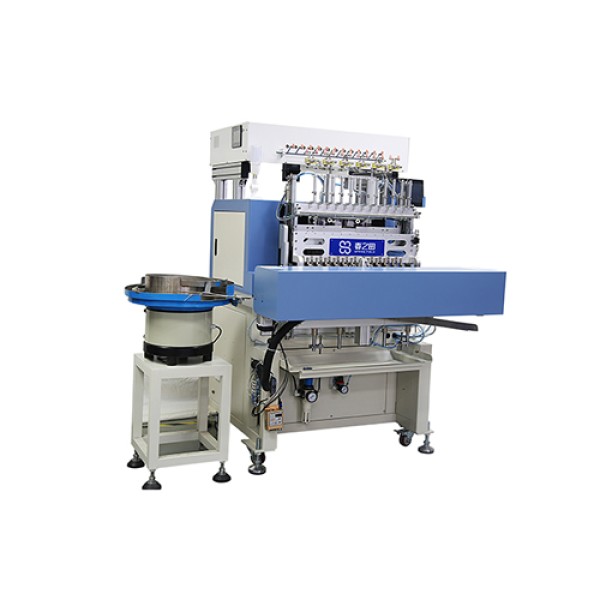

Solenoid valve coils, switching power supply coils, relay coils, ignition coils, and other skeleton-type coils that do not require encapsulation.
Suitable for high-precision, high-volume winding and wire wrapping/tape wrapping for ordinary skeleton coils.
1. Motion Controller: 6-axis CNC precision control system
2. Solenoid Valve: SMC
3. Servo Motor: Fuji/Panasonic (Japan)
4. Guide Rails and Ball Screws: Taiwan TBI/THK
5. Cylinder: SMC/AirTac
| Number of Spindles | 12 |
| Spindle Pitch | 46mm |
| Spindle Speed | 12000 RPM |
| Spindle Servo Motor | 750W/1500W |
| Optional | X:400WY:400Wz:400WA:400W |
| Spindle Quick Clamp Device Inner Diameter | Standard 8mm, Special 10mm |
| Wire Diameter Range | Φ0.02-Φ0.75 (>0.75) |
| Optional | For wire diameters above 0.4mm, additional accessories are required. |
| Maximum Winding Skeleton Outer Diameter | 25mm |
| Guide Needle Movement Range | X: 110mm Y: 108mm z: 120mm A: 100mm |
| Spindle Positioning Accuracy | ±0.1° |
| Movement Positioning Accuracy | 0.01mm |
| Winding Angle | Standard 0°, 90° |
| Control System | 6-axis CNC Precision Control System |
| Air Pressure | 0.5-0.65MPa |
| Power Supply Voltage | AC220V/50Hz (AC110V/60Hz) |
| Total Power | 2000W/2700W |
| Equipment Weight | 600Kg |
| Equipment Dimensions | 1200L900W1500W |
| Can be equipped with pneumatic scissors | Simple cutter, automatic tape wrapping device, double-wire parallel winding, four-wire parallel winding. |
