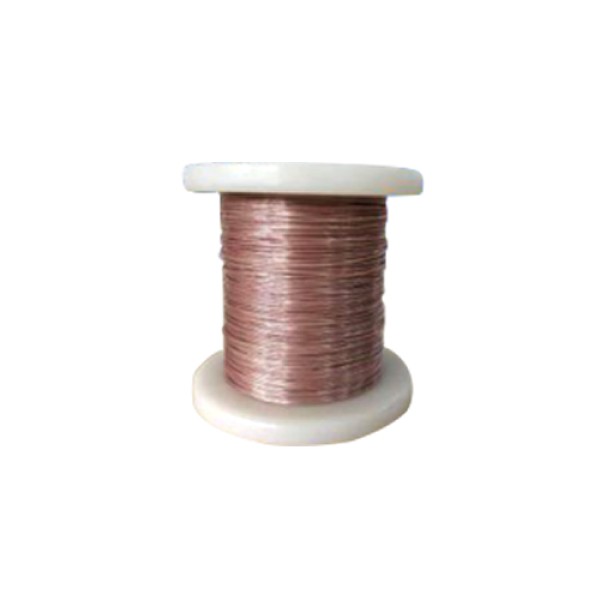

Class F Three-Layer Wrapped Insulated Wire (Peach Pink)

Stock:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Online Service

Enter Shop

Product Details

1. Can be directly soldered.

2. Can be wound at high speed using an automatic winding machine.

3. Meet EU RoHS 2.0, HF halogen-free, REACH SVHC environmental requirements.

Product structure diagram

Product Parameters

conductor	tinned wire, enameled stranded wire Tin-plated wire, enameled strand, Litz wire
Texture of material	PPS
Temperature tolerance grade	Class F
Withstand voltage	AC 6000V/60S No breakdown
Hierarchy	three layers, two layers, one layer
Application scope	power transformer, electronic communication, achieve miniaturization of transformers, automotive electronics Power transformer, electronic communication, miniaturization of transformer and automobile electronics
Pass safety regulations	In Certification

Serial Number	conductor		Finished product		maximum conductor resistance (at 20℃ Ω/km)
Serial Number	Diameter (mm)	Tolerance (mm)	Target outer diameter (mm)	Tolerance (mm)	maximum conductor resistance (at 20℃ Ω/km)
1	0.30	±0.010	0.50	±0.050	280.0
2	0.32	±0.010	0.52	±0.050	237.0
3	0.35	±0.010	0.54	±0.050	198.0
4	0.40	±0.010	0.59	±0.050	152.0
5	0.45	±0.010	0.63	±0.050	120.0
6	0.50	±0.020	0.68	±0.050	95.1
7	0.55	±0.020	0.72	±0.050	78.6
8	0.60	±0.020	0.77	±0.050	66.1
9	0.65	±0.020	0.82	±0.050	56.3
10	0.70	±0.020	0.87	±0.050	48.5
11	0.80	±0.020	0.95	±0.050	37.2
12	0.90	±0.020	1.09	±0.050	29.4
13	1.00	±0.030	1.16	±0.050	23.8
14	1.20	±0.030	1.41	±0.050	16.5

Mainly used for high-frequency transformers, power supplies, inductors, chargers, adapters, communication networks, LED wires, etc.
