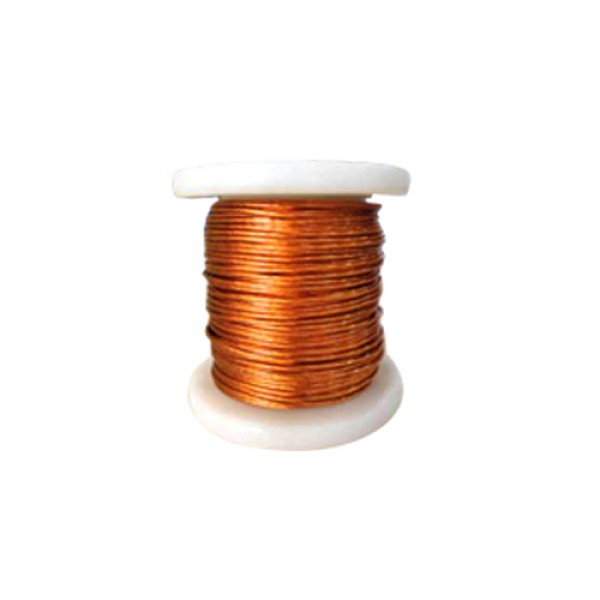

1. Can be directly soldered.
2. Can be wound at high speed using an automatic winding machine.
3. Meet EU ROHS 2.0, HF halogen-free, and REACH SVHC environmental requirements.
Product Structure Diagram
| conductor | Tinned wire, enameled stranded wire Tin-plated wire, enameled strand, Litz wire |
| Texture of material | Pi |
| Temperature tolerance grade | Class H |
| Withstand voltage | AC 6000V/60S No breakdown |
| Hierarchy | three layers, two layers, one layer |
| Application scope | Power transformer, electronic communication, miniaturization of transformers, automotive electronics Power transformer, electronic communication, miniaturization of transformer and automobile electronics |
| Pass safety regulations | Certifying |
| Serial number The serial number |
Specifications specifications |
Conductor (mm) Conductor (mm) |
Overlap rate Overlap rate |
Finished product (mm) Product (mm) |
Withstand Voltage Withstand voltage (KV) |
Maximum conductor resistance (at 20°C) (Ω/km) |
||
| stranded outer diameter Stranded outside diameter |
Tolerance The tolerance |
Target outer diameter Target diameter |
Tolerance The tolerance |
|||||
| 1 | 0.1*20 | 0.58 | ±0.1 | ≥50% | 0.65 | ±0.15 | 5 | 121.43 |
| 2 | 0.1*25 | 0.65 | ±0.1 | ≥50% | 0.85 | ±0.15 | 5 | 97.14 |
| 3 | 0.1*55 | 0.96 | ±0.1 | ≥50% | 1.10 | ±0.15 | 5 | 44.16 |
| 4 | 0.1*70 | 1.09 | ±0.1 | ≥67% | 1.36 | ±0.15 | 5 | 34.69 |
| 5 | 0.1*80 | 1.16 | ±0.1 | ≥50% | 1.36 | ±0.15 | 5 | 30.36 |
| 6 | 0.1*100 | 1.30 | ±0.1 | ≥50% | 1.50 | ±0.15 | 5 | 24.29 |
| 7 | 0.1*200 | 1.84 | ±0.1 | ≥50% | 2.05 | ±0.15 | 5 | 12.14 |
| 8 | 0.1*270 | 2.14 | ±0.1 | ≥50% | 2.34 | ±0.15 | 5 | 9.19 |
| 9 | 0.1*350 | 2.44 | ±0.1 | ≥67% | 2.75 | ±0.15 | 5 | 6.94 |
| 10 | 0.06*180 | 1.00 | ±0.1 | ≥50% | 1.20 | ±0.10 | 5 | 39.86 |
Mainly used for high-frequency transformers, power supplies, inductors, chargers, adapters, communication networks, LED wires, etc.
