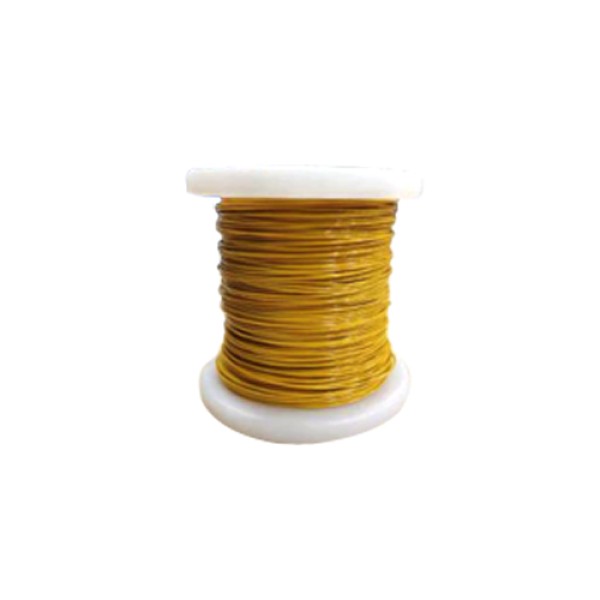

Four-layer insulated wire

Stock:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Product Details

Directly solderable.

2. Can be wound at high speed using an automatic winding machine.

3. Meet EU RoHS 2.0, HF halogen-free, REACH SVHC environmental requirements.

Product Structure Diagram

Product Parameters

conductor	Bare copper wire, enameled wire, tinned wire, stranded wire Bare copper wire, enameled wire, tinned wire, strand, Litz wire
Texture of material	PET, ETFE, TAPE
Temperature tolerance grade	Class B, Class F
Withstand voltage	AC 6000V/60S no breakdown
Hierarchy	four layers
Application scope	Small transformer, mobile phone charger, fast wireless charger, automotive electronics
Pass safety regulations	UL2353, UL60950, UL1446

Product Specifications

Serial Number	conductor		Finished product		Maximum conductor resistance (at 20℃ Ω/KM)	Minimum elongation (%)
Serial Number	Diameter (mm)	Tolerance (mm)	Target outer diameter (mm)	Tolerance (mm)	Maximum conductor resistance (at 20℃ Ω/KM)	Minimum elongation (%)
1	0.20	±0.008	0.47	±0.020	607.6	15
2	0.25	±0.008	0.52	±0.020	382.5	15
3	0.26	±0.010	0.53	±0.020	358.4	15
4	0.28	±0.010	0.55	±0.020	307.3	15
5	0.30	±0.010	0.57	±0.020	262.9	20
6	0.32	±0.010	0.59	±0.020	230.0	20
7	0.35	±0.010	0.62	±0.020	191.2	20
8	0.40	±0.010	0.67	±0.020	145.3	20
11	0.45	±0.010	0.72	±0.020	114.2	20
12	0.50	±0.010	0.77	±0.020	91.4	20
13	0.55	±0.020	0.82	±0.020	78.2	20
14	0.60	±0.020	0.87	±0.020	65.3	20
15	0.65	±0.020	0.92	±0.020	55.3	20
16	0.70	±0.020	0.97	±0.020	47.5	20
17	0.75	±0.020	1.02	±0.020	41.2	20
18	0.80	±0.020	1.07	±0.020	36.1	25
19	0.85	±0.020	1.12	±0.020	31.9	25
20	0.90	±0.020	1.17	±0.020	28.4	25
21	0.95	±0.020	1.22	±0.020	25.4	25
22	1.00	±0.030	1.27	±0.020	23.3	25

Mainly used for high-frequency transformers, power supplies, inductors, chargers, adapters, communication networks, LED wires, etc.
