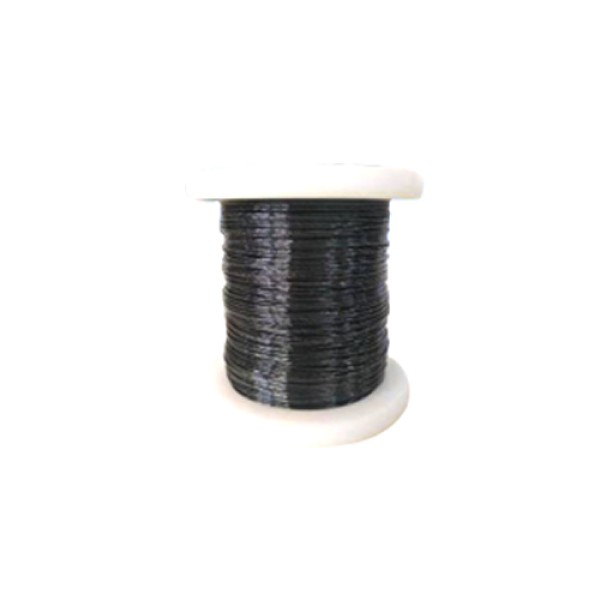

Single-layer Wrapped Stranded Insulated Wire

Stock:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Online Service

Enter Shop

Product Details

1. Can be directly soldered.

2. Can be wound at high speed using an automatic winding machine.

3. Comply with EU ROHS 2.0, HF halogen-free, and REACH SVHC environmental requirements.

Product structure diagram

conductor	tinned wire, enameled stranded wire Tin-plated wire, enameled strand, Litz wire
Texture of material	PET, PPS, PI
Temperature tolerance grade	Class B, Class F, Class H
Withstand voltage	AC 6000V/60S No breakdown
Hierarchy	three layers, two layers, one layer
Application scope	Power transformer, electronic communication, achieving transformer miniaturization, automotive electronics Power transformer, electronic communication, miniaturization of transformer and automobile electronics
Pass safety regulations	Certifying

Serial number	Conductor Type/Temperature Rating	Conductor (mm)						Maximum conductor resistance (at 20℃ Ω/km)
Serial number	Conductor Type/Temperature Rating	Diameter	tolerance	Minimum paint film thickness (mm)	Maximum finished outer diameter of monofilament (mm)	number of shares	Maximum outer diameter of finished product (mm)	Maximum conductor resistance (at 20℃ Ω/km)
1	SFBW-2(lz)/155℃	0.1*7	±0.008	0.003	0.118	7	0.42	350.35
2	SFBW-2(lz)/155℃	0.1*10	±0.008	0.003	0.118	10	0.5	245.24
3	SFBW-2(lz)/155℃	0.1*15	±0.008	0.003	0.118	15	0.57	163.5
4	SFBW-2(lz)/155℃	0.1*20	±0.008	0.003	0.118	20	0.64	122.62
5	SFBW-2(lz)/155℃	0.1*25	±0.008	0.003	0.118	25	0.71	98.1
6	SFBW-2(lz)/155℃	0.1*30	±0.008	0.003	0.118	30	0.78	81.75
7	SFBW-2(lz)/155℃	0.1*35	±0.008	0.003	0.118	35	0.83	70.07
8	SFBW-2(lz)/155℃	0.1*40	±0.008	0.003	0.118	40	0.88	61.31
9	SFBW-2(lz)/155℃	0.1*45	±0.008	0.003	0.118	45	0.9	54.5
10	SFBW-2(lz)/155℃	0.1*50	±0.008	0.003	0.118	50	0.93	49.05
11	SFBW-2(lz)/155℃	0.1*60	±0.008	0.003	0.118	60	1.1	40.87

Mainly used for high-frequency transformers, power supplies, inductors, chargers, adapters, communication networks, LED wires, etc.
