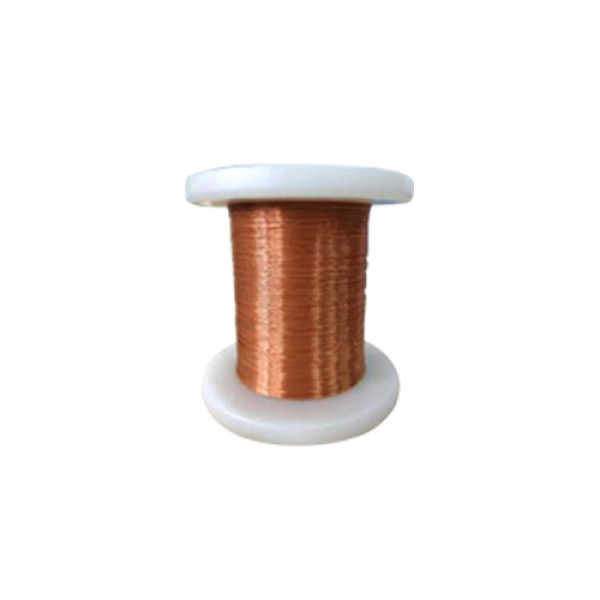

Teflon-Coated Single- or Double-Layer Insulated Wires

Stock:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Product Details

1. Can be directly soldered.

2. Can be wound at high speed using an automatic winding machine.

3. Comply with EU ROHS2.0, HF halogen-free, REACH SVHC environmental requirements.

Product construction diagram

Product Parameters

conductor	enameled wire, tinned wire Enamelled wire, tin-plated wire
Texture of material	ETFE, FEP, PFA
Temperature tolerance grade	Class B, Class F, Class H
Withstand voltage	3000V
Hierarchy	Single-layer
Application scope	New Energy Vehicle
Pass safety regulations	Certifying/Certification

conductor	enameled wire, tinned wire Enamelled wire, Tinned wire
Texture of material	ETFE, PFA
Temperature tolerance grade	Class B, Class F, Class H
Withstand voltage	5000V
Hierarchy	Double-deck
Application scope	New Energy Vehicle

Serial Number NO	conductor		Finished product		Maximum conductor resistance (at 20°C Ω/km)	Minimum elongation (%)
Serial Number NO	Diameter (mm)	Tolerance (mm)	Target Outer Diameter (mm)	Tolerance (mm)	Maximum conductor resistance (at 20°C Ω/km)	Minimum elongation (%)
1	0.10	±0.008	0.30	0.32	2647	15
2	0.11	±0.008	0.31	0.33	2153	15
3	0.12	±0.008	0.32	0.34	1786	15
4	0.13	±0.008	0.33	0.35	1505	15
5	0.14	±0.008	0.34	0.36	1286	15
6	0.15	±0.008	0.35	0.37	1111	15
7	0.16	±0.008	0.36	0.38	969.5	15
8	0.17	±0.008	0.37	0.39	853.5	15
9	0.18	±0.008	0.38	0.4	757.2	15
10	0.19	±0.008	0.39	0.41	676.2	15
11	0.20	±0.008	0.40	0.42	607.6	15
12	0.21	±0.008	0.41	0.43	549.0	15
13	0.22	±0.008	0.42	0.44	498.4	15
14	0.23	±0.008	0.43	0.45	454.5	15
15	0.24	±0.008	0.44	0.46	416.2	15
16	0.25	±0.008	0.45	0.47	382.5	15
17	0.26	±0.010	0.46	0.48	358.4	15
18	0.27	±0.010	0.47	0.49	331.4	15
19	0.28	±0.010	0.48	0.5	307.3	15
20	0.29	±0.010	0.49	0.51	285.7	20
21	0.30	±0.010	0.50	0.52	262.9	20
22	0.32	±0.010	0.52	0.54	230.0	20
23	0.35	±0.010	0.55	0.57	191.2	20
24	0.37	±0.010	0.57	0.59	170.6	20
25	0.40	±0.010	0.60	0.62	145.3	20
26	0.45	±0.010	0.65	0.67	114.2	20
27	0.50	±0.010	0.70	0.72	91.4	20
28	0.55	±0.020	0.75	0.77	78.2	20
29	0.60	±0.020	0.80	0.82	65.3	20
30	0.65	±0.020	0.85	0.87	55.3	20
31	0.70	±0.020	0.90	0.92	47.5	20
32	0.75	±0.020	0.95	0.97	41.2	20
33	0.80	±0.020	1.00	1.02	36.1	25
34	0.85	±0.020	1.05	1.07	31.9	25
35	0.90	±0.020	1.10	1.12	28.4	25
36	0.95	±0.020	1.15	1.17	25.4	25
37	1.00	±0.030	1.20	1.22	23.3	25
Note: The above standards for conductor, resistance, and elongation rate refer to JIS C 3202. Note: the standards of conductor, resistance and elongation refer to JIS C 3202

Mainly used for high-frequency transformers, power supplies, inductors, chargers, adapters, communication networks, LED wires, etc.
