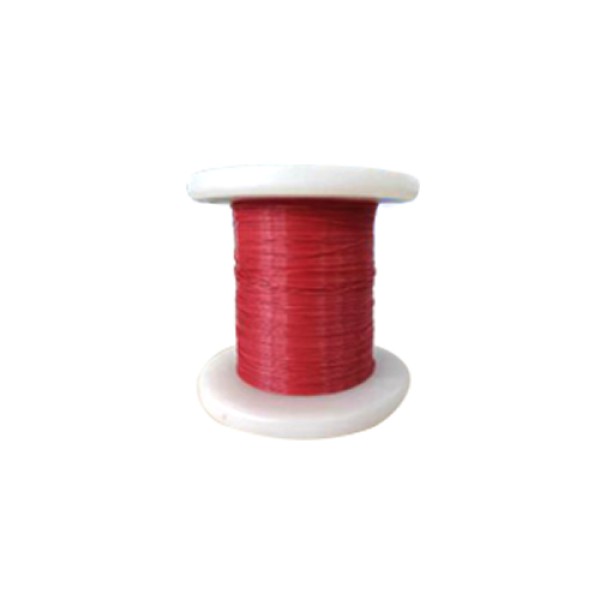

Teflon-Type H-Class Insulated Wire

Stock:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Product Details

1. Can be directly soldered.

2. Can be wound at high speed with an automatic winding machine.

3. Comply with EU RoHS 2.0, HF halogen-free, and REACH SVHC environmental requirements.

Product structure diagram

Product Parameters

conductor	enameled wire, tinned wire Enamelled wire, tin plated wire
Material texture	PFA
Temperature tolerance grade	Class H
Withstand voltage	6000V
Hierarchy	three layers
Application scope	New Energy Vehicle
Pass safety regulations	UL2353 , UL60950 , UL60601

Product Specifications

Serial Number	conductor conductor		finished product finished product		Maximum conductor resistance (at 20℃ Ω/km) Maximum conductor resistance	Minimum elongation (%) Minimum elongation
Serial Number	Diameter (mm) diameter (mm)	Tolerance (mm) tolerance(mm)	Target outer diameter (mm) target diameter (mm)	Maximum outer diameter (mm) maximum diameter (mm)		Minimum elongation (%) Minimum elongation
1	0.10	±0.008	0.33	0.35	2647	15
2	0.12	±0.008	0.35	0.37	1786	15
3	0.14	±0.008	0.37	0.39	1286	15
4	0.15	±0.008	0.38	0.40	1111	15
5	0.16	±0.008	0.39	0.41	969.5	15
6	0.17	±0.008	0.40	0.42	853.5	15
7	0.18	±0.008	0.41	0.43	757.2	15
8	0.19	±0.008	0.42	0.44	676.2	15
9	0.20	±0.008	0.43	0.45	607.6	15
10	0.21	±0.008	0.44	0.46	549.0	15
11	0.22	±0.008	0.45	0.47	498.4	15
12	0.23	±0.008	0.46	0.48	454.5	15
13	0.24	±0.008	0.47	0.49	416.2	15
14	0.25	±0.008	0.48	0.50	382.5	15
15	0.26	±0.01	0.49	0.51	358.4	15
16	0.27	±0.01	0.50	0.52	331.4	15
17	0.28	±0.01	0.51	0.53	307.3	15
18	0.29	±0.01	0.52	0.54	285.7	20
19	0.30	±0.01	0.53	0.55	262.9	20
20	0.32	±0.01	0.55	0.57	230.0	20
21	0.35	±0.01	0.58	0.60	191.2	20
22	0.37	±0.01	0.60	0.62	170.6	20
23	0.40	±0.01	0.63	0.65	145.3	20
24	0.45	±0.01	0.67	0.69	114.2	20
25	0.50	±0.01	0.73	0.75	91.4	20
26	0.55	±0.02	0.78	0.80	78.2	20
27	0.60	±0.02	0.83	0.85	65.3	20
28	0.65	±0.02	0.88	0.90	55.3	20
29	0.70	±0.02	0.93	0.95	47.5	20
30	0.75	±0.02	0.98	1.00	41.2	20
31	0.80	±0.02	1.03	1.05	36.1	25
32	0.85	±0.02	1.08	1.10	31.9	25
33	0.90	±0.02	1.13	1.15	28.4	25
34	0.95	±0.02	1.18	1.20	25.4	25
35	1.00	±0.03	1.23	1.25	23.3	25
Note: The above conductor and resistance standards refer to JIS C 3202. Note: The standards for conductor and resistance refer to JIS C 3202.

Mainly used for high-frequency transformers, power supplies, inductors, chargers, adapters, communication networks, LED wires, etc.
