1. Can be directly soldered.

2. Can be wound at high speed using an automatic winding machine.

3. Comply with EU RoHS 2.0, HF halogen-free, REACH SVHC environmental requirements.

Product structure diagram

Product Parameters

conductor	Bare copper stranded wire, enameled stranded wire Bare copper strand and enameled strand, Litz wire
Material/Texture	PET, ETFE, PFA
Temperature tolerance grade	Class B, Class F, Class H
Withstand voltage	AC 6000V/60S No breakdown
Hierarchy	three layers, two layers, one layer
Application scope	Automotive, Charging Stations, Marine, Consumer Power Supplies, Solar Photovoltaic, Medical Healthcare Automobile, Charging Pile, Ship, Consumption Power Supply, Solar Photovoltaic, Medical Treatment
Pass safety regulations	UL2353, UL60950, UL1446, IEC/EN60950, IEC/EN62368, IEC/EN60601, IEC/EN61558, IEC/EN60065, VDE

Product Specifications

No.	Conductor size (mm)		Finished product size (mm)					Maximum conductor resistance (at 20°C Ω/km)
No.	Specifications	Single wire conductor tolerance	Minimum single-side wall thickness	2UEW Target outer diameter	2UEW Maximum outer diameter	3UEW Target outer diameter	3UEW Maximum outer diameter	Maximum conductor resistance (at 20°C Ω/km)
1	0.1*10	±0.005	0.09	0.63	0.66	0.60	0.63	242.86
2	0.1*13	±0.005	0.09	0.69	0.72	0.66	0.69	186.82
3	0.1*15	±0.005	0.09	0.72	0.75	0.69	0.72	161.91
4	0.1*20	±0.005	0.09	0.80	0.85	0.77	0.82	121.43
5	0.1*25	±0.005	0.09	0.87	0.92	0.83	0.88	97.14
6	0.1*30	±0.005	0.09	0.94	0.99	0.89	0.94	80.95
7	0.1*33	±0.005	0.09	0.97	1.02	0.93	0.98	73.59
8	0.1*35	±0.005	0.09	1.00	1.05	0.95	1.00	69.39
9	0.1*40	±0.005	0.09	1.05	1.10	1.00	1.05	60.72
10	0.1*42	±0.005	0.09	1.07	1.12	1.02	1.07	57.82
11	0.1*45	±0.005	0.09	1.10	1.15	1.05	1.10	53.97
12	0.1*50	±0.005	0.09	1.15	1.20	1.09	1.14	48.57
13	0.1*55	±0.005	0.09	1.20	1.25	1.14	1.19	44.16
14	0.1*58	±0.005	0.09	1.22	1.27	1.16	1.21	41.87
15	0.1*60	±0.005	0.09	1.24	1.29	1.18	1.23	40.48
16	0.1*65	±0.005	0.09	1.28	1.38	1.22	1.32	37.36
17	0.1*70	±0.005	0.09	1.32	1.42	1.25	1.35	34.69
18	0.1*75	±0.005	0.09	1.36	1.46	1.29	1.39	32.38
19	0.1*80	±0.005	0.09	1.40	1.50	1.33	1.43	30.36
20	0.1*84	±0.005	0.09	1.43	1.53	1.35	1.45	28.91
21	0.1*90	±0.005	0.09	1.47	1.57	1.39	1.49	26.98
22	0.1*100	±0.005	0.09	1.54	1.64	1.46	1.56	24.29
23	0.1*105	±0.005	0.09	1.57	1.67	1.49	1.59	23.13
24	0.1*110	±0.005	0.09	1.60	1.70	1.52	1.62	22.08
25	0.1*120	±0.005	0.09	1.67	1.77	1.58	1.68	20.24
26	0.1*130	±0.005	0.09	1.72	1.82	1.63	1.73	18.68
27	0.1*133	±0.005	0.09	1.74	1.84	1.65	1.75	18.26
28	0.1*140	±0.005	0.09	1.78	1.88	1.69	1.79	17.35
29	0.1*150	±0.005	0.10	1.87	2.02	1.77	1.92	16.19
30	0.1*160	±0.005	0.10	1.92	2.07	1.82	1.97	15.18
31	0.1*170	±0.005	0.10	1.97	2.12	1.87	2.02	14.29
32	0.1*180	±0.005	0.10	2.02	2.17	1.91	2.06	13.49
33	0.1*190	±0.005	0.10	2.07	2.22	1.96	2.11	12.78
34	0.1*200	±0.005	0.10	2.12	2.27	2.00	2.15	12.14
35	0.1*210	±0.005	0.10	2.16	2.31	2.05	2.20	11.56
36	0.1*220	±0.005	0.10	2.21	2.36	2.09	2.24	11.04
37	0.1*240	±0.005	0.10	2.30	2.45	2.17	2.32	10.12
38	0.1*250	±0.005	0.10	2.34	2.49	2.21	2.36	9.71
39	0.1*280	±0.005	0.11	2.48	2.68	2.35	2.55	8.67
40	0.1*300	±0.005	0.11	2.56	2.76	2.42	2.62	8.10
41	0.1*350	±0.005	0.11	2.74	2.94	2.59	2.79	6.94
42	0.1*360	±0.005	0.11	2.78	2.98	2.63	2.83	6.75
43	0.1*382	±0.005	0.11	2.86	3.06	2.70	2.90	6.36
44	0.1*400	±0.005	0.11	2.92	3.12	2.75	2.95	6.07
45	0.1*420	±0.005	0.12	3.00	3.20	2.84	3.04	5.78
46	0.12*15	±0.005	0.09	0.84	0.89	0.82	0.87	111.25
47	0.12*20	±0.005	0.09	0.93	0.98	0.91	0.96	83.44
48	0.12*25	±0.005	0.09	1.02	1.07	1.00	1.05	66.75
49	0.12*35	±0.005	0.09	1.17	1.22	1.14	1.19	47.68
50	0.12*120	±0.005	0.10	2.01	2.16	1.96	2.11	13.91
51	0.12*140	±0.005	0.10	2.15	2.30	2.10	2.25	11.92
52	0.13*60	±0.005	0.09	1.55	1.65	1.52	1.62	23.61
53	0.15*35	±0.005	0.09	1.37	1.47	1.34	1.44	30.22
54	0.15*57	±0.005	0.09	1.69	1.79	1.66	1.76	18.56
55	0.15*100	±0.005	0.10	2.20	2.35	2.16	2.31	10.58
56	0.15*150	±0.005	0.11	2.66	2.86	2.61	2.81	7.05
57	0.15*200	±0.005	0.12	3.06	3.26	2.99	3.19	5.29
58	0.15*250	±0.005	0.13	3.40	3.65	3.33	3.58	4.23
59	0.15*300	±0.005	0.13	3.70	3.95	3.62	3.87	3.53
60	0.16*19	±0.005	0.09	1.13	1.18	1.11	1.16	48.79
61	0.16*30	±0.005	0.09	1.36	1.46	1.34	1.44	30.90
62	0.2*10	±0.005	0.09	1.03	1.08	1.01	1.06	58.87
63	0.2*12	±0.005	0.09	1.11	1.16	1.08	1.13	49.06
64	0.2*15	±0.005	0.09	1.21	1.26	1.19	1.24	39.25
65	0.2*18	±0.005	0.09	1.31	1.41	1.28	1.38	32.71
66	0.2*20	±0.005	0.09	1.37	1.47	1.34	1.44	29.44
67	0.2*21	±0.005	0.09	1.40	1.50	1.36	1.46	28.04
68	0.2*25	±0.005	0.09	1.50	1.60	1.47	1.57	23.55
69	0.2*40	±0.005	0.10	1.88	2.03	1.83	1.98	14.72
70	0.2*50	±0.005	0.10	2.07	2.22	2.02	2.17	11.77
71	0.2*70	±0.005	0.11	2.42	2.62	2.37	2.57	8.41
72	0.2*80	±0.005	0.11	2.57	2.77	2.51	2.71	7.36
73	0.25*10	±0.006	0.09	1.22	1.27	1.20	1.25	37.76
74	0.25*15	±0.006	0.09	1.44	1.54	1.43	1.53	25.17
75	0.25*20	±0.006	0.09	1.64	1.74	1.61	1.71	18.88
76	0.30*20	±0.006	0.10	1.93	2.08	1.92	2.07	12.95
77	0.03*40	±0.004	0.09	0.50	0.53	0.47	0.50	736.19
78	0.04*1000	±0.004	0.10	2.07	2.22	1.92	2.07	15.98
79	0.04*2000	±0.004	0.11	2.84	3.04	2.64	2.84	7.99
80	0.05*40	±0.005	0.09	0.66	0.69	0.63	0.66	261.12
81	0.05*50	±0.005	0.09	0.72	0.75	0.68	0.71	208.90
82	0.05*60	±0.005	0.09	0.76	0.81	0.73	0.78	174.08
83	0.05*70	±0.005	0.09	0.81	0.86	0.77	0.82	149.21
84	0.05*80	±0.005	0.09	0.85	0.90	0.81	0.86	130.56
85	0.05*90	±0.005	0.09	0.89	0.94	0.85	0.90	116.05
86	0.05*100	±0.005	0.09	0.93	0.98	0.88	0.93	104.45
87	0.05*110	±0.005	0.09	0.96	1.01	0.91	0.96	94.95
88	0.05*120	±0.005	0.09	0.99	1.04	0.94	0.99	87.04
89	0.05*130	±0.005	0.09	1.03	1.08	0.97	1.02	80.34
90	0.05*140	±0.005	0.09	1.06	1.11	1.00	1.05	74.61
91	0.05*150	±0.005	0.09	1.09	1.14	1.03	1.08	69.63
92	0.05*155	±0.005	0.09	1.10	1.15	1.04	1.09	67.39
93	0.05*165	±0.005	0.09	1.13	1.18	1.07	1.12	63.30
94	0.05*175	±0.005	0.09	1.16	1.21	1.10	1.15	59.68
95	0.05*180	±0.005	0.09	1.17	1.22	1.11	1.16	58.03
96	0.05*190	±0.005	0.09	1.20	1.25	1.13	1.18	54.97
97	0.05*200	±0.005	0.09	1.22	1.27	1.16	1.21	52.22
98	0.05*210	±0.005	0.09	1.25	1.30	1.18	1.23	49.74
99	0.05*215	±0.005	0.09	1.26	1.31	1.19	1.24	48.58
100	0.05*225	±0.005	0.09	1.28	1.33	1.21	1.26	46.42
101	0.05*250	±0.005	0.09	1.34	1.44	1.27	1.37	41.78
102	0.05*360	±0.005	0.09	1.57	1.67	1.48	1.58	29.01
103	0.05*500	±0.005	0.09	1.81	1.91	1.71	1.81	20.89
104	0.05*550	±0.005	0.10	1.92	2.07	1.81	1.96	18.99
105	0.05*900	±0.005	0.11	2.41	2.61	2.27	2.47	11.61
106	0.05*1000	±0.005	0.11	2.52	2.72	2.38	2.58	10.44
107	0.05*1050	±0.005	0.11	2.58	2.78	2.43	2.63	9.95
108	0.05*1250	±0.005	0.11	2.79	2.99	2.63	2.83	8.36
109	0.05*1800	±0.005	0.12	3.32	3.52	3.12	3.32	5.80
110	0.05*2000	±0.005	0.12	3.48	3.68	3.28	3.48	5.22
111	0.06*100	±0.005	0.09	1.04	1.09	1.00	1.05	71.05
112	0.06*150	±0.005	0.09	1.23	1.28	1.17	1.22	47.37
113	0.06*360	±0.005	0.09	1.79	1.89	1.70	1.80	19.74
114	0.06*500	±0.005	0.10	2.10	2.25	2.00	2.15	14.21
115	0.06*650	±0.005	0.10	2.36	2.51	2.24	2.39	10.93
116	0.06*700	±0.005	0.11	2.46	2.66	2.34	2.54	10.15
117	0.063*525	±0.005	0.10	2.22	2.37	2.17	2.32	11.65
118	0.07*100	±0.005	0.09	1.16	1.21	1.13	1.18	50.90
119	0.07*140	±0.005	0.09	1.33	1.43	1.30	1.40	36.36
120	0.07*150	±0.005	0.09	1.37	1.47	1.34	1.44	33.93
121	0.07*360	±0.005	0.10	2.04	2.19	1.99	2.14	14.14
122	0.07*400	±0.005	0.10	2.13	2.28	2.09	2.24	12.72
123	0.08*19	±0.005	0.09	0.67	0.70	0.66	0.69	202.82
124	0.08*30	±0.005	0.09	0.79	0.84	0.78	0.83	128.45
125	0.08*33	±0.005	0.09	0.82	0.92	0.81	0.91	116.77
126	0.08*200	±0.005	0.09	1.71	1.81	1.68	1.78	19.27
127	0.08*1200	±0.005	0.13	3.98	4.23	3.90	4.15	3.21
128	0.08*1500	±0.005	0.13	4.42	4.67	4.33	4.58	2.57
129	0.09*105	±0.005	0.09	1.44	1.54	1.39	1.49	28.74

Main use

Mainly used for high-frequency transformers, power supplies, inductors, chargers, adapters, communication networks, LED wires, etc.

Menu

Trending Search

Trending Products

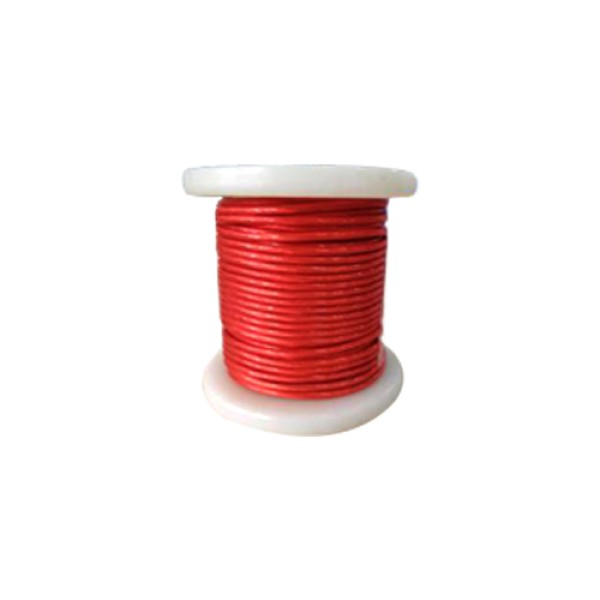

Teflon-Insulated Twisted-Pair Cable
