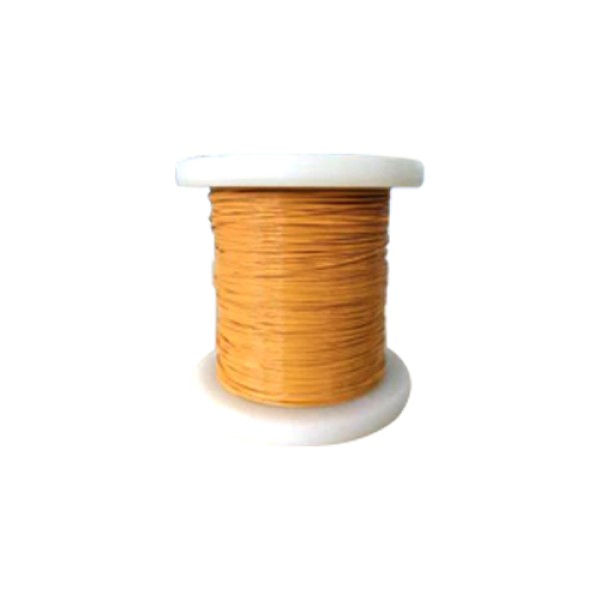

Stranded Insulated Wire

Stock:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Product Details

1. Directly solderable.

2. Can be wound at high speed using an automatic winding machine.

3. Comply with EU RoHS 2.0, HF halogen-free, and REACH SVHC environmental requirements.

Product structure diagram

Product specifications

conductor	bare copper stranded wire, enameled stranded wire Bare copper strand and enameled strand, Litz wire
Material texture	PET, ETFE, PFA
Temperature tolerance grade	Class B, Class F, Class H
Withstand voltage	AC 6000V/60S No breakdown
Hierarchy	three layers, two layers, one layer
Application scope	Automotive, charging stations, vessels, consumer power supplies, solar photovoltaic, healthcare. Automobile, Charging Pile, Ship, Consumption Power Supply, Solar Photovoltaic, Medical Treatment
Pass safety regulations	UL2353, UL60950, UL1446, IEC/EN60950, IEC/EN62368, IEC/EN60601, IEC/EN61558, IEC/EN60065, VDE

Serial Number No	conductor		Finished product		Maximum conductor resistance (at 20°C Ω/km)
Serial Number No	Diameter (mm)	Tolerance (mm)	Target outer diameter (mm)	Tolerance (mm)	Maximum conductor resistance (at 20°C Ω/km)
1	0.1*10	±0.008	0.65	0.680	245.24
2	0.1*15	±0.008	0.70	0.730	163.50
3	0.1*20	±0.008	0.78	0.810	122.62
4	0.1*25	±0.008	0.82	0.850	98.10
5	0.1*30	±0.008	0.90	0.930	81.75
6	0.1*35	±0.008	0.95	0.980	70.07
7	0.1*40	±0.008	1.00	1.030	61.31
8	0.1*45	±0.008	1.05	1.080	54.50
9	0.1*50	±0.008	1.08	1.110	49.05
10	0.1*55	±0.008	1.15	1.180	44.59
11	0.1*60	±0.008	1.22	1.250	40.87
12	0.1*65	±0.008	1.28	1.310	37.73
13	0.1*70	±0.008	1.31	1.340	35.03
14	0.1*75	±0.008	1.35	1.380	32.70
15	0.1*80	±0.008	1.40	1.430	30.66
16	0.1*84	±0.008	1.41	1.440	29.20
17	0.1*90	±0.008	1.45	1.480	27.25
18	0.1*100	±0.008	1.51	1.540	24.52
19	0.1*105	±0.008	1.54	1.570	23.36
20	0.1*110	±0.008	1.58	1.610	22.29
21	0.1*120	±0.008	1.62	1.650	20.44
22	0.1*130	±0.008	1.68	1.710	18.86
Note: The above conductor and resistance standards refer to JIS C 3202. Note: the standards of conductor & resistance refer to JIS C 3202

Mainly used for high-frequency transformers, power supplies, inductors, chargers, adapters, communication networks, LED wires, etc.
