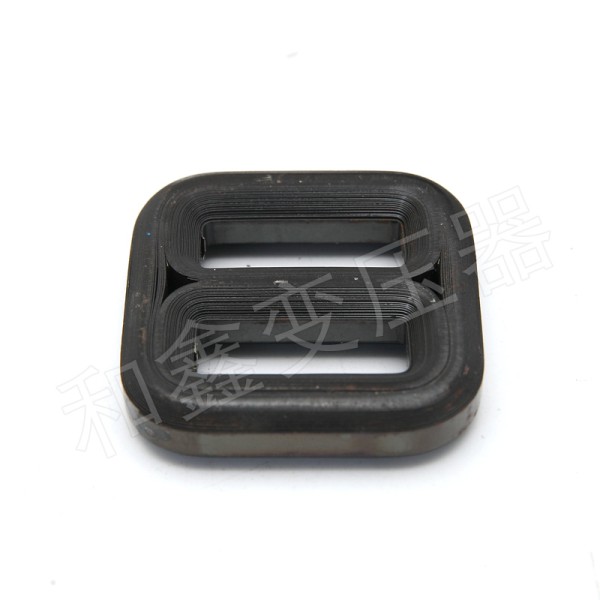

SR Type Three-Phase Core Specification Table
|
Model |
Dimensions (MM) |
Notes |
||||||
|
Length (L) |
Width (H) |
Window Length (I) |
Window Width (h) |
h1 |
Diameter (T) |
t |
||
|
SR-15 |
73.8 |
79.2 |
43 |
16.5 |
48.39 |
16.2 |
15.39 |
Use R-10 bobbin |
|
SR-30 |
79.08 |
87.12 |
45 |
18 |
53.04 |
17.8 |
17.04 |
Use R-20 bobbin |
|
SR-75 |
97.2 |
108.8 |
54 |
22 |
65.6 |
22.5 |
21.6 |
Use R-50 bobbin |
|
SR-120 |
119.8 |
114.2 |
75 |
23.5 |
69.41 |
23.5 |
22.41 |
Use R-80 bobbin |
|
SR-150 |
120.6 |
129.1 |
72.5 |
29 |
81.03 |
25.2 |
24.03 |
Use R-100 bobbin |
|
SR-250 |
133.8 |
137 |
84 |
31 |
85.65 |
27 |
25.65 |
Use R-160 bobbin |
|
SR-400 |
150 |
149.2 |
94 |
31.5 |
93.08 |
29.4 |
28.08 |
Use R-260 bobbin |
|
SR-500 |
157.4 |
163.1 |
98 |
37 |
103.7 |
31 |
29.7 |
Use R-320 bobbin |
|
SR-700 |
170 |
176.1 |
102 |
37 |
108.02 |
37 |
34.02 |
|
|
SR-900 |
183.5 |
177.4 |
105 |
37.5 |
111.18 |
37.7 |
36.18 |
Use R-600 bobbin |
|
SR-1.2K |
190.86 |
203.8 |
105 |
37.5 |
117.93 |
44 |
42.93 |
Use R-800 bobbin |
|
SR-1.5K |
215.32 |
216 |
130 |
44 |
130.66 |
44 |
42 |
Use R-1K bobbin |
|
SR-2K |
225.3 |
238.4 |
125 |
44 |
138.14 |
52 |
50.14 |
Use R-1.5K bobbin |
|
SR-3K |
240 |
259.4 |
127 |
45 |
146.48 |
58 |
56.48 |
Use R-2K bobbin |
|
SR-5K |
262.4 |
298.6 |
138 |
56 |
174.2 |
64 |
62.2 |
Use R-3.6K bobbin |
|
SR-7.5K |
312.8 |
324.2 |
174 |
58 |
185.4 |
71 |
69.4 |
Use R-5K bobbin |
|
SR-10K |
334.7 |
346.1 |
188 |
63 |
199.36 |
75 |
73.36 |
Use R-6.3K bobbin |
|
SR-15K |
366 |
386 |
210 |
76 |
230 |
80 |
78 |
Use R-10K bobbin |
|
SR-20K |
397.2 |
446.3 |
215 |
100 |
282.09 |
85 |
82.09 |
Use R-15K bobbin |
|
SR-30K |
411.2 |
498.3 |
235 |
117 |
322.09 |
91 |
88.09 |
Use R-20K bobbin |
|
SR-40K |
450.9 |
506.4 |
260 |
110 |
315.45 |
98 |
95.45 |
Use R-25K bobbin |
|
SR-50K |
472.9 |
528.4 |
270 |
112 |
325.45 |
104 |
101.45 |
Oil-immersed |
|
SR-50K |
482.9 |
528.4 |
280 |
112 |
325.45 |
104 |
101.45 |
Dry type |
|
SR-63K |
499.4 |
577.5 |
285 |
128 |
363.18 |
110 |
107.18 |
|
|
SR-80K |
|
|
|
|
|
|
|
|
|
SR-100K |
582 |
662 |
330 |
142 |
410 |
131 |
126 |
Energy-saving type |
|
SR-100K |
567.5 |
595.2 |
340 |
127 |
367.73 |
119 |
113.73 |
Standard type |
